Offset Double-Layer Thermal CTP Plate

Offset Double-Layer Thermal CTP Plate

As a professional printing plate manufacturer, we produce offset double-layer thermal CTP plates for printers that need stable imaging, clean dots, and dependable press performance. This type of thermal CTP plate is widely used in commercial printing, packaging, labels, magazines, and other offset printing applications where consistency matters.

Our double-layer thermal CTP plate is designed to give a strong balance between image quality, run length, and press stability. Compared with ordinary plates, the double-layer coating structure helps improve imaging performance and printing durability, making it a practical choice for many printers.

What Is an Offset Double-Layer Thermal CTP Plate?

An double-layer thermal CTP plate is a computer-to-plate printing plate with a two-layer coating structure. It is designed for thermal plate setters and is mainly used in offset printing.

In simple terms, the plate receives laser imaging on a thermal CTP machine, then goes through processing, and is finally mounted on the press for printing. The double-layer design helps the plate perform more steadily during imaging and printing, especially when customers require clear reproduction and reliable long-run output.

Double-layer CTP board structure

1. Aluminum base

Material: High-purity 1050/1060 aluminum alloy, H16/H18 state

Thickness: 0.15mm / 0.20mm / 0.25mm / 0.30mm / 0.40mm

Processing: Electrolytic roughening + anodizing (AAO film) + sealing, uniform surface texture, strong hydrophilicity, dimensional stability, and resistance to acid and alkali corrosion

2. Lower layer (bottom layer / printing layer) — Functional core

Ingredients: High-adhesion phenolic resin + infrared absorber + corrosion-resistant filler

Functions:

(1) Strong adhesion, preventing coating peeling

(2) Improves printing durability, abrasion resistance, and chemical resistance (resistant to UV inks, car wash water, and developer)

(3) Blocks oxygen, protecting the upper imaging layer

3. Upper layer (imaging layer / photosensitive layer) - Imaging core

Ingredients: Infrared thermosensitive polymer + Photoinitiator + Dye

Functions:

(1) Highly sensitive to 830nm infrared laser, thermal decomposition/crosslinking reaction occurs in the exposed area

(2) Forms an ink-loving image area after development, with clear dots and sharp edges

(3) Uniform thickness (1.2-1.8μm), stable imaging

Why the Double-Layer Structure Matters

The coating structure is one of the key parts of a thermal CTP plate. With a double-layer design, the plate can offer several practical benefits.

Better Imaging Stability

A stable coating helps the plate respond evenly during exposure. This supports sharp image reproduction, smooth gradients, and accurate dot transfer.

Stronger Printing Durability

For printers handling medium to long runs, durability is very important. A double-layer thermal CTP plate can help maintain image integrity during printing and reduce the risk of early wear.

More Reliable Press Performance

Good ink-water balance is essential in offset printing. Our plates are designed to support stable startup, cleaner printing, and smoother operation on press.

Core technical parameters

Main Features of Our Offset Double-Layer Thermal CTP Plate

As a manufacturer, we focus on making plates that are easy to use and reliable in real production environments. Our offset double-layer thermal CTP plate typically offers the following features:

High Sensitivity

The plate works efficiently with mainstream thermal CTP equipment, helping users achieve fast and steady plate making.

Fine Dot Reproduction

Clear highlights, solid shadows, and smooth transitions are important for quality printing. Our plate coating supports precise image reproduction for demanding print jobs.

Good Chemical Resistance

During printing, the plate should remain stable under normal pressroom conditions. A well-designed coating helps improve resistance and keep performance consistent.

Long Run Length

Our double-layer thermal CTP plate is suitable for commercial and packaging printing where longer run length is often required.

Wide Application Compatibility

It can be used for a range of offset printing products, from books and brochures to packaging boxes and labels.

Common Applications

Offset double-layer thermal CTP plates are used in many printing sectors because they provide a dependable combination of quality and efficiency.

Commercial Printing

Ideal for brochures, catalogs, posters, books, and magazines where image clarity and consistent output are important.

Packaging Printing

Suitable for packaging boxes and other printed packaging materials that require stable long-run performance.

Label Printing

For certain offset label applications, thermal CTP plates can support clean details and repeatable results.

Newspaper and Publication Printing

They can also be applied in publication printing where reliable plate making and press performance are needed.

Advantages for Printing Companies

From our experience as a plate manufacturer, printers choose offset double-layer thermal CTP plates because they want both quality and production efficiency.

Consistent Print Quality

A stable plate helps reduce variation between jobs and supports more predictable printing results.

Improved Production Efficiency

When a plate images well and runs smoothly on press, operators can save time during setup and reduce unnecessary interruptions.

Lower Risk in Long Runs

For larger print volumes, plate durability becomes more important. A dependable double-layer CTP plate can help lower the risk of plate replacement during production.

Suitable for Different Print Demands

Whether the job is commercial print, packaging, or publication work, this plate type gives printers a flexible solution.

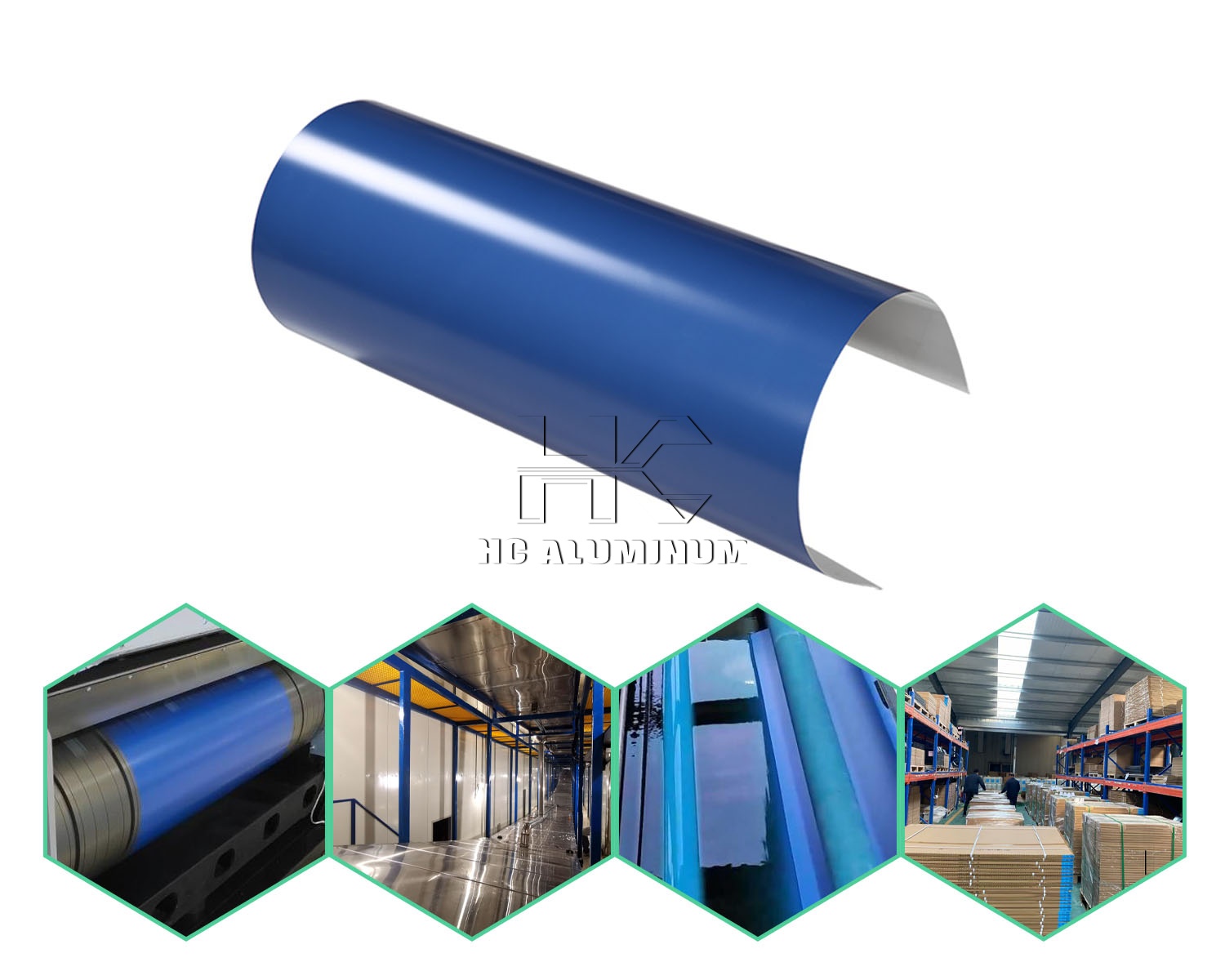

How We Manufacture Our Thermal CTP Plates

As a professional offset printing plate manufacturer, we pay close attention to aluminum base quality, coating uniformity, and production consistency. We manufacture thermal CTP plates with a focus on practical pressroom performance.

Our production process is designed to help ensure:

• Stable coating quality

• Good imaging response

• Reliable developing performance

• Consistent printing durability

• Compatibility with common thermal CTP systems

We understand that printers need more than just a plate specification. They need a product that performs well every day in real production.

How to Choose the Right Double-Layer Thermal CTP Plate

When selecting an offset double-layer thermal CTP plate, printers usually consider a few key points.

Plate Setter Compatibility

Make sure the plate matches your thermal CTP equipment and standard workflow.

Run Length Requirements

Different print jobs require different durability levels. Choosing the right plate for your average run length helps improve efficiency.

Print Quality Expectations

If your work includes fine text, detailed images, or smooth tonal areas, plate imaging performance is especially important.

Pressroom Conditions

Stable performance under normal printing conditions can help reduce waste and improve job consistency.

Conclusion

Offset double-layer thermal CTP plates are a reliable choice for printers who need stable imaging, good durability, and consistent offset printing quality. As a manufacturer, we supply thermal CTP plates that are designed for practical use across commercial printing, packaging, labels, and publications.

If you are looking for an offset double-layer thermal CTP plate with dependable performance and stable quality, we are ready to support your printing business with professional plate solutions.
